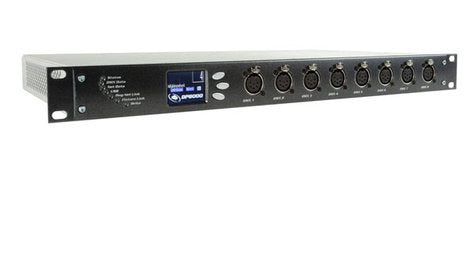

The High End Systems DMX Processor 8000 (DP8K) adds additional DMX processing capabilities to the Hog 4 line and provides output power for Hog 4 systems. The Hog 4 Operating System doesn't limit operators to a fixed number of DMX channels. You can just add as many DP8K's as needed to supply the number of DMX universes needed for the production. The DP8K manages 16 DMX universes with ease, providing standard DMX, Art-Net, and E1.3.1 (sACN) outputs.
In tandem with Hog 4OS products, the DMX Processor 8000 now supports timecode input. Up to 8 USB MIDI/LTC widgets can be plugged into the DP8000. Each input is considered an “index” and can be used to bring up to 8 unique timecode clocks into the Hog 4OS control system through the DP8000.
High End Systems DMX Processor 8000 Features:
Eight 5-pin XLR DMX 512 outputs
Expandable to 16 via Widgets
16 universes of DMX via Art-Net and E1.3.1 (sACN) output
Powerful distributed processing of cross-fades and effects
Local interface with LCD screen and buttons for configuration and testing
DMX status and test facilities
All functions are configurable remotely
Firmware remotely upgradeable over network
High End Systems DMX Processor 8000 Specifications:
2.0 GHz Intel Dual Core processor with 1 GByte RAM and 1 GByte Flash
Gigabit ethernet
Dual Ether-Con connectors (Hog-Net and Art-Net)
White LED backlit graphic LCD for graphical user interface
Comprehensive LED status feedback
Connectors: 8 5-pin XLR, 1 EtherCon for Hog-Net, 1EtherCon for Art-Net, 2 USB-A
Auto-ranging mains input (90-250V AC)
Locking IEC connector
Precision machined Aluminium panel with wear-resistant anoprinted legends
1U 19" rack unit, 11" deep
Kensington Security Slot
Compatible with Hog 4, Full Boar 4, Road Hog 4, Hog 4PC, Wholehog3, RoadHog Full Boar, Hog iPC, and Hog 3PC
