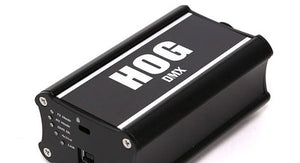

The High End Systems HOG-USB-WIDGET is packaged in a sleek, black metal package. The Wholehog DMX Widget provides a single universe of DMX 512 output from any Hog 4 OS consoles and any Hog 4 PC. Up to eight DMX Widgets may be connected at once via a USB Hub to provide 8 full universes of DMX 512 to the Hog 4, Full Boar 4 and Hog 4 PC. Only four DMX Widgets can be connected to the Road Hog 4.
This configuration provides an excellent solution for backup and playback only applications. By adding Nano Hog 4, Playback Wing 4 and Master Wing 4,users can configure powerful control solutions that precisely suit their needs and budgets.
For Hog 4 PC users, attaching 1 DMX Widget also unlocks 1 universe of DMX over Art-Net and E1.3.1 (sACN). Users can connect up to 8 total DMX Widgets to Hog 4 PC to unlock a total of 8 Art-Net and sACN universes.
High End Systems HOG-USB-WIDGET Features:
USB connection to Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC computers
Single DMX 512 output on 5-pin XLR connector
512 channels total output capacity
Up to eight units can be connected via a USB Hub (except to Road Hog 4, where four can be connected)
Rugged, sleek metal package that can be stacked
Status LEDs for power and data in/out
Kensington Security Slot
One USB input connector
Fully powered via USB port
