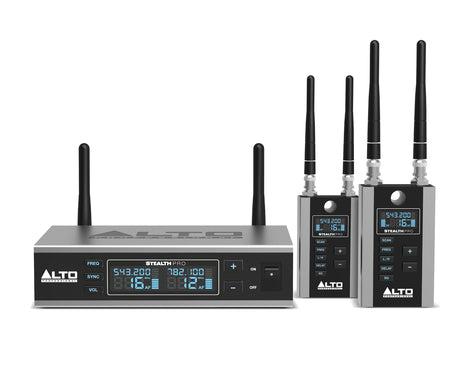

Compatible with any loudspeaker system and offering a 200-foot range, the Stealth Wireless Pro from Alto Professional will eliminate the need for speaker cabling while adding wireless audio connectivity to any active loudspeaker. Offering even greater performance capabilities than the original Stealth Wireless system, the Stealth Wireless Pro contains a single dual-channel transmitter with a 2-antenna system (either dual mono or stereo switchable) for true diversity operation. A front panel LCD screen with dual frequency display conveniently shows the RF frequency and channel as well as the AF signal level for each channel.
With Stealth Wireless Pro, it’s easy to add wireless audio connectivity to any active loudspeaker, obviating the necessity for long, complex cable runs, simplifying setup and teardown, saving time—all without any compromise in audio quality. The system works well through walls, floors and ceilings, providing setup flexibility that far exceeds conventional hardwired systems.
Stealth Wireless Pro can be set for mono or stereo use. Two XLR + balanced TRS 1/4-inch combo inputs on the transmitter accommodate the main outputs from nearly any mixing board or console. Two receivers are included with the system. They feature slim-line metal housings, dual removable and swiveling hinged antennae, delay line functionality and a Feature LockSwitch to prevent unintended operation once the system is configured. Each of the receiving units has a single XLR output to send the signal to a powered speaker array or a traditional amplifier-and-speaker combo.
NOTE: Some gear shown above is NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.
Includes
Stealth Pro Transmitter (x1)
Stealth Pro Receiver (x2)
Power Adapters (x3)
Mini-XLR to XLR Cables (x2)
Removable Antennas (x6)
M10 Rigging Bolts (x2)
Short Rack Ear (x2)
Long Rack Ear (x1)
M4 Rack Ear Coupling Bolts (x5)
Center Coupling Bracket (x1)
User Guide
Safety & Warranty Manual
Features
Dual-channel UHF Transmission and True Diversity reception for mission critical applications
Replace audio cable runs of up to 200 feet (61 meters)
Auto frequency scan and sync between transmitter and receiver units
Backlit dual LCD displays with RF and AF metering
Aluminum and steel enclosures and removable antennae
Switchable stereo or dual mono operation
Built-in delay line functionality for hassle-free delay stacks configuration
Rack-mountable transmitter with optional front panel antenna placement
Trim size is easily 1U rack-mountable; two fit side-by-side in 19-inch rack
Two XLR + balanced TRS 1/4-inch combo inputs
Single XLR output sends the signal to a powered
Specifications
Transmitter:
Frequency Response: 50Hz – 17kHz, ±3dB
Frequency Range: 540–570MHz (USA), 614–640MHz (EU), 606–640 MHz (UK)
Channels: Up to 700 selectable UHF frequency bands (regional dependent)
Wireless Range: 330 feet (100 meters)
Bandwidth: 50KHz
Oscillation Type: PLL
Frequency Stability: ±0.005%
Frequency Deviation: ±20kHz
Inputs: (2) Combo XLR and 1/4” (6.35mm) TRS
Power: 12V, 1.0A
Dimensions (height x width x depth):
6.75” x 5.7” x 1.75”
172mm x 145mm x 45mm
Weight: 1.6 lb. / 0.73kg
Receiver:
Sensitivity: -100dBm
Image Rejection: > 70dB
T.H.D.: < 0.05% @ 1KHz
Outputs: 1 mini-XLR
Output Impedance: 600 ohm balanced
Power: 12V, 1.0A
Dimensions (height x width x depth):
2.75” x 1.13” x 4.5”
70mm x 29mm x 115mm
Weight: 0.6 lb. / 0.3kg
