Overview

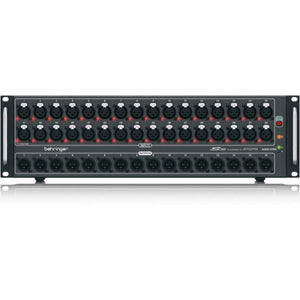

The Behringer S32 Digital Snake I/O Box takes the burden out of connecting your FOH (Front of House) console with the talent monitor. It provides 32 fully programmable, remotely controllable high-end mic preamps, 16 analog, balanced XLR returns at the stage end, and connects to the FOH through a single CAT5 cable without the need for a dedicated router.
This I/O box is designed with multiple scenarios in mind; it works equally well as a stand-alone pair for use with analog mixing consoles, or as part of the trio of a digital mixing solution along with the X32 digital mixer and P16 personal monitoring system. It is a 32-in and 16-out stage box that features AES50 networking with the Klark Teknik SuperMAC technology.

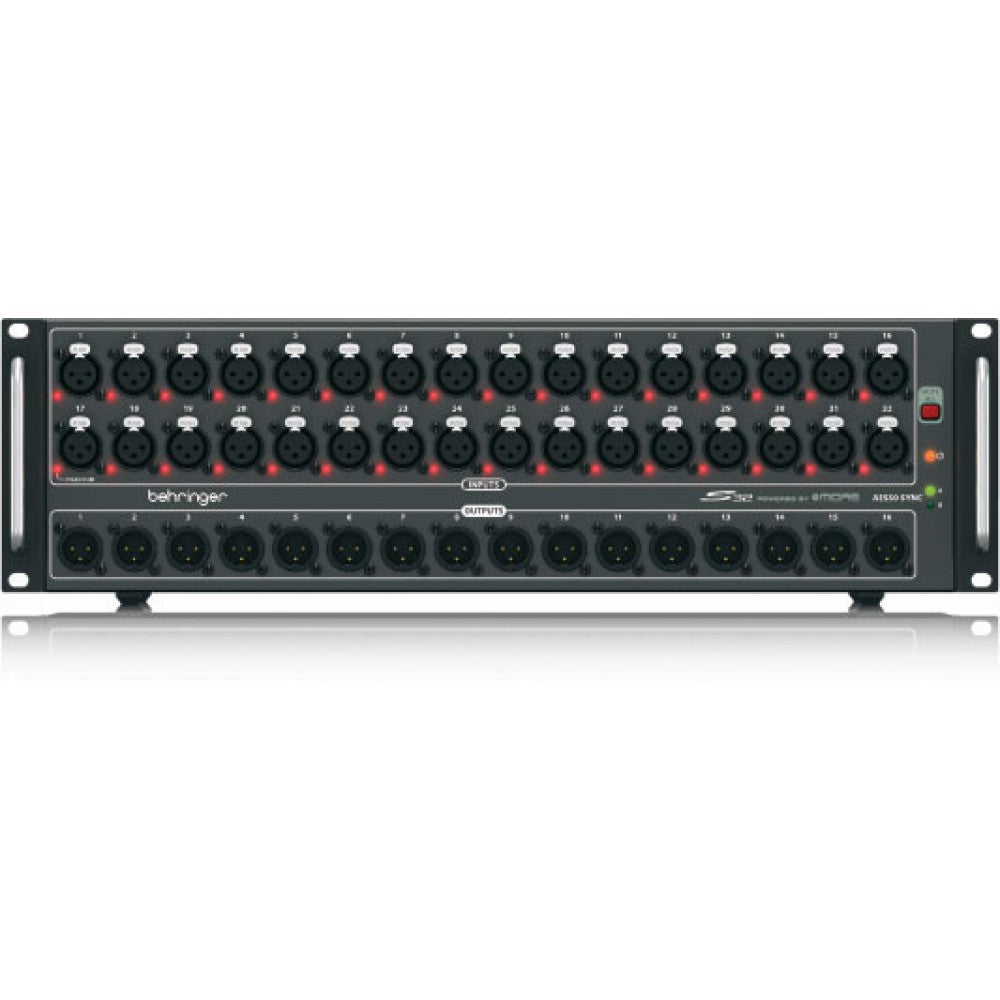

The 32 Midas-designed XLR inputs are fully programmable and remote controllable from the X32 digital mixer. The 16 balanced XLR outputs provide ample sends to the stage for mains and monitoring. The front panel offers indicators for phantom power and AES50 sync. Additionally, a Mute-All-Inputs button quietens all inputs when connecting an input cable.
The dual AES50 jacks allow transmission of all audio and MIDI data to the X32 FOH with a single Ethernet cable, and also allow up to two S32s to be cascaded for maximum channel count. In this scenario, 64 bi-directional audio channels at 24-bit / 48 kHz can be transferred on just one CAT5 line between the FOH console and the stage, including 48 analog inputs from stage, 32 analog outputs on stage, as well as the 16 Ultranet channels, MIDI data, and head amp remote control.
An additional Ultranet output provides 16 channels for use with the P16 Personal Monitoring System through the Ethernet cable, allowing each musician to dial in his or her own custom mix from the stage. A pair of ADAT ports can carry additional sends to the stage beyond the 16 analog outputs, or split the 16 inputs. Lastly, a USB jack allows for future firmware updates.
Features
Simple, flexible, and affordable digital snake system that works with any AES50 network-ready digital console
32 x fully programmable and remote-controllable Midas-designed mic preamps give you exceptional sound, right from the stage
16 x analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage
AES50 network ports featuring Klark Teknik SuperMac technology, providing you with ultra-low latency digital audio that's in-ear compatible
Up to 328' of networking capability via a single lightweight CAT-5e cable (not included)
Dual AES50 ports let you cascade multiple S32 units, without a merger or a router
Precise LED metering plus 7-segment displays let you keep a close eye on your levels
Headphones output assignable to any of the inputs/outputs for on-stage monitoring
Ultranet connectivity for Behringer's Powerplay P16 Personal Monitoring System is perfect for In-ear applications
Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
MIDI In/Out for bi-directional communication between FOH console and on-stage MIDI devices
USB connector for system updates via PC
Planet Earth switching power supply for maximum flexibility, noise-free audio, superior transient response plus low power consumption for energy saving
Durable yet compact, all-steel 3U rack-mount chassis provides flexible mounting
Specifications
Channels 32
Manufacturer Part Number S32
