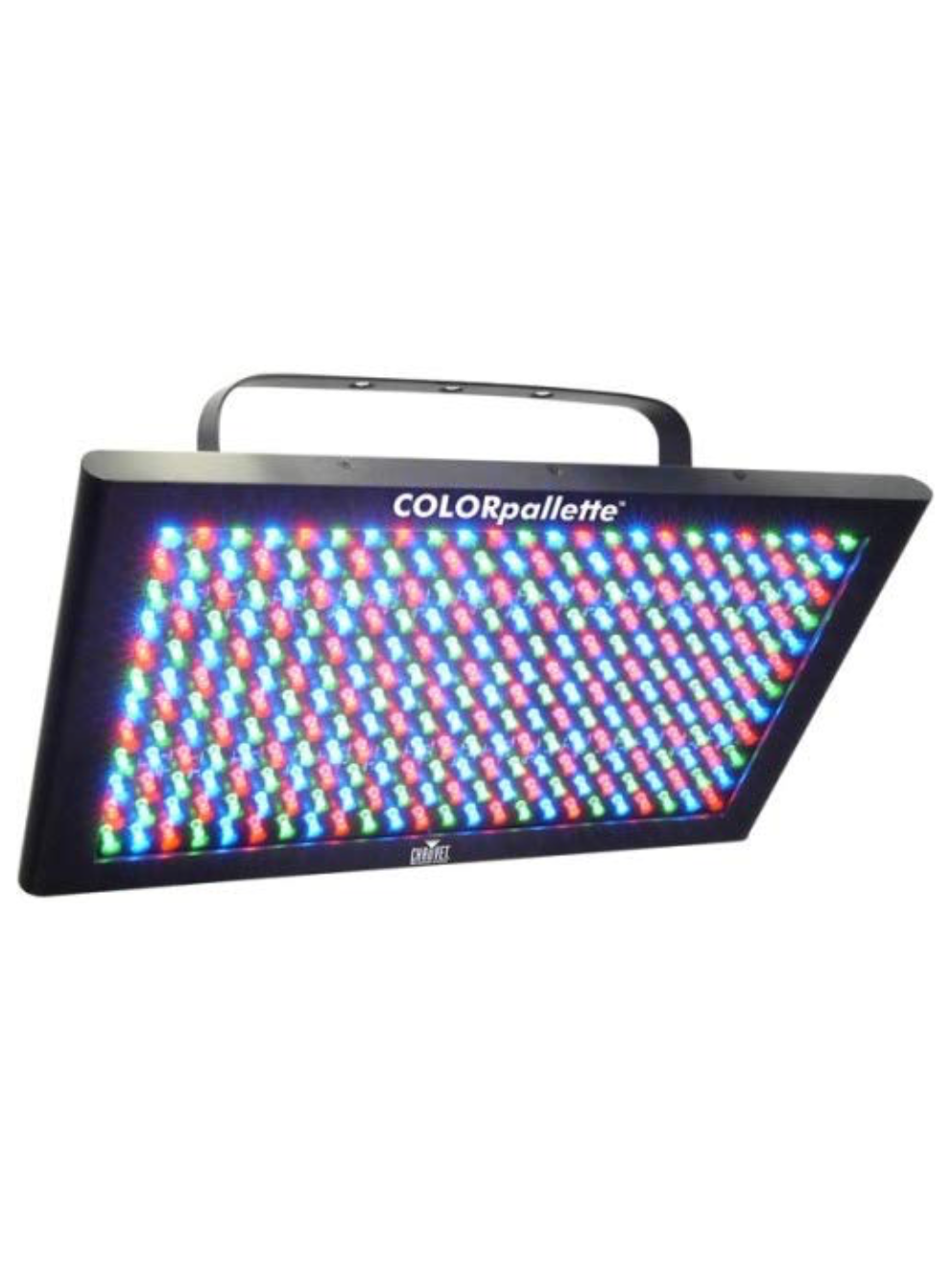

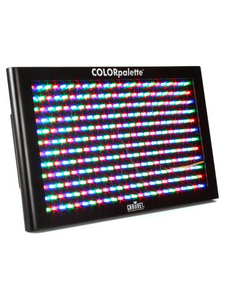

Chauvet DJ COLORpalette
COLORpalette is a powerful wash panel fitted with 288 LEDs (96 red, 96 green, 96 blue) to emit a wash or colorful effects during any mobile application. It includes built-in, automated and sound-activated programs for plug-and-play operation, or you can create customized looks using 6, 9, 15 or 27 channels of DMX control.
Highlights
-
Compact LED panel designed for applications in need of a wash light or eye candy effects
-
Easily generate complex looks with built-in, automated programs featuring zone control
-
Design custom light shows using ShowXpress™ Pixels
-
Convenient, wireless non-DMX control using the optional IRC-6 remote
-
Control via DMX, IRC-6, Standalone or Master/Slave modes
-
Easily transports in the optional CHS-40 VIP Gear Bag
Specifications
- DMX Channels: 3, 6, 9, 15 or 27
- DMX Connectors: 3-pin XLR
- Light Source: 288 LEDs (96 red, 96 green, 96 blue) 0.25 W (20 mA), 100,000 hours life expectancy
- Beam Angle: 31° x 29°
- Illuminance: 1,813 lux @ 2 m
- Power Linking: 16 units @ 120 V; 31 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current: 58 W, 0.4 A @ 120 V, 60 Hz
60 W, 0.2 A @ 230 V, 50 Hz - Weight: 6.2 lb (2.8 kg)
- Dimensions: 16.8 x 9.8 x 7 in (425 x 248 x 178 mm)
- Approvals: CE, MET
- Optional Controllers: IRC-6
WHAT'S INCLUDED
- Power cord
- Hanging bracket with mounting hardware
- Warranty card
- Quick Reference Guide
