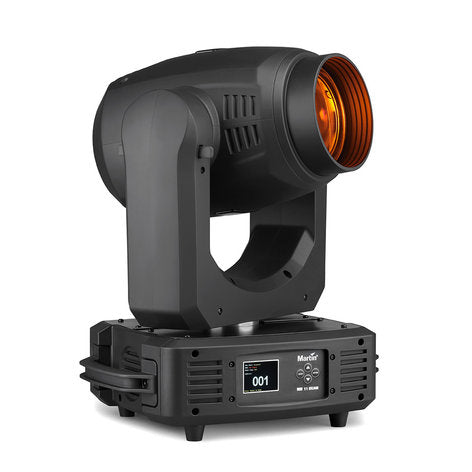

Martin's RUSH MH 11 Beam is a high-intensitiy beam moving head fixture that delivers refined optics for excellent intensity and sharp mid-air effects. Designed for high end installations and rental applications, the RUSH MH 11 Beam utilizes the same 250W Platinum 11R lamp found in the Martin RUSH MH 7 Hybrid. It also features the same color temperature and palette as the RUSH MH 7 and MAC Axiom.
The high-intensity lamp combined with class-leading optics in the MH 11 allows the fixture to achieve sharp, high-output beam effects with a super-tight 2.6° beam angle. The fixture can produce a range of complex and precise mid-air looks utilizing eight rotating and indexing gobos and an 8-facet prism. The fixture also offers 13 selectable colors and frost and motorized focus.
The RUSH MH 11 Beam is well-suited for live venue installations such as nightlife, houses of worship and cruise ships, and its rugged industrial design makes it suitable for use in most touring applications.
Martin RUSH MH 11 Beam Includes:
RUSH MH 11 Beam fixture
Philips MSD Platinum 11R 250W lamp (installed)
4.9 ft (1.5 m) power cable, without mains plug
Two Omega clamp attachment brackets with 1/4-turn fasteners
Martin RUSH MH 11 Beam Features:
Powerful 250W Philips Platinum 11R lamp
Super tight 2.6° beam angle
(8) Rotating and indexing gobos
Ultra sharp, narrow long-throw beam
Mid-air effects
(10) Selectable colors + CTO, CTB, UV
Frost effect
8-facet circular prism
Motorized focus
3 + 5 pin XLR DMX connection
Neutrik TRUE1 in and thru socket
Martin RUSH MH 11 Beam Specifications:
Physical:
Dimensions (LxWxH): 14.4" x 12" x 22.9" (364 x 305 x 581 mm)
Weight: 43 lbs (19.5 kg)
Dynamic Effects:
Color wheel: 13 colors (including CTO and UV) + open, rotation with variable direction and speed
Rotating gobo wheel: 8 gobos + open, wheel rotation, gobo indexing, rotation and shake
Prism: 8-facet circular, indexing, rotation with variable direction and speed
Focus: Motorized, 16-bit coarse and fine control
Frost
Dimming: 0-100%, coarse and fine control
Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
Pan: 660°
Tilt: 250°
Control and Programming:
Control options: DMX, RDM, stand-alone
DMX channels: 18
Setting and addressing: Control panel with backlit LCD display
Pan and tilt speed: Adjustable via onboard control panel and DMX
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI E1.20
Optics:
Approved lamp: Philips MSD Platinum 11R 250W
Color temperature: 6800 K ± 250 K
CRI (Color rendering index): 81
Cutoff beam angle: 2.6°
Average lifetime: 2,000 hours (under manufacturer's test conditions)
Construction:
Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20
Gobos:
Interchangeable rotating gobos
Permitted material: Steel or aluminum
Diameter: 0.55" ± 0.008" (14 mm ± 0.2 mm)
Max. image diameter: 0.51" (13 mm)
Gobo thickness: 0.032" (0.8 mm)
Installation:
Mounting points: Two quarter-turn omega brackets for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to illuminated surfaces: 33 ft (10 m)
Minimum distance to combustible materials: 8" (200 mm)
Minimum clearance around fans and air vents: 8" (200 mm)
Connections:
AC power in, thru: Neutrik TRUE1
DMX data in, thru: 3-pin and 5-pin locking XLR
Electrical:
AC power: 100-120 / 200-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical power and current:
120 V, 60 Hz: 380W, 3.5 A, PF 0.9
230 V, 50 Hz: 370W, 1.7 A, PF 0.9
Thermal:
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, ± 10%, at full intensity, full white): 1300 BTU/hr
Approvals:
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3
US safety: UL 1573
US EMC: CFR Title 47 Part 15 Class A
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ (pending): RCM
