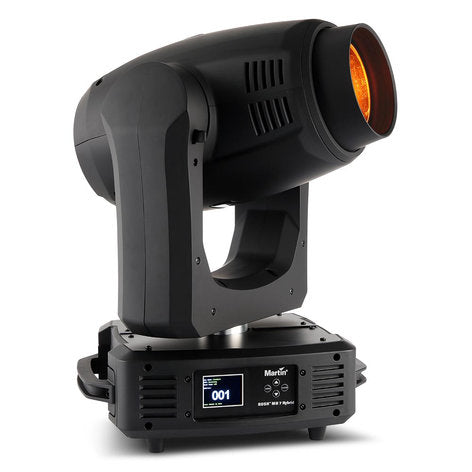

The Martin RUSH MH 7 Hybrid is an all-in-one beam, spot and wash moving head with class-leading optics and a zoom system that allows designers maximum flexibility from the high-energy dance floor to performing arts spaces, all within an affordable price bracket.
The RUSH MH 7 Hybrid features include sharp, crisp optics with three zoom modes: 2.2° to 15° in beam mode, 2.5° to 24° in spot mode and 15° to 45° in wash mode.
The Philips Platinum 11R 250W 7800 K lamp contributes to the RUSH MH 7 Hybrid’s impressive output. The fixture features 8 rotating/indexing and 12 static gobos, 10 selectable colors, and exciting beam effects from its 8-facet circular and 4-facet linear prisms.
Martin Professional RUSH MH 7 Features:
250 W Philips Platinum 11R Lamp
2.2° – 15° zoom in Beam Mode
2.5° – 24° zoom in Spot Mode
15° – 45° zoom in Wash Mode
Eight rotating/indexing gobos
12 static gobos
Ten colors plus CTO, CTB, UV
4-facet linear prism
8-facet circular prism
Motorized focus
3- and 5-pin XLR DMX connection
PowerCon IN and THRU
Martin Professional RUSH MH 7 Specifications:
Part Number: 90280100
Physical:
Length: 11.9" (301 mm)
Width: 16.1" (408 mm)
Height: 25.4" (644 mm)
Weight: 52.9 lbs. (24 kg)
Color wheel: 13 colors incl. CTO, CTB, UV and open
Rotating gobo wheel: 8 gobos plus open, 16-bit indexing, rotation and shake
Static gobo wheel: 12 gobos plus open, wheel rotation and shake
Prism 1: 4-facet linear, 16-bit indexing, variable rotation direction and speed
Prism 2: 8-facet radial, 16-bit indexing, variable rotation direction and speed
Focus: Motorized, 16-bit coarse and fine control
Zoom: Motorized, 16-bit coarse and fine control
Dimming: 0-100%, coarse and fine control
Shutter: Strobe effect, pulse effects, instant open and blackout
Pan: 540°
Tilt: 250°
Control system: DMX
DMX channels: 21
Setting and addressing: Control panel with backlit LCDdisplay
DMX compliance: USITT DMX512/1990
Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20
Lamp:
Approved lamp: Philips MSD Platinum 11R 250 W
Color temperature: 7800 K
Average lifetime: 2000 hours
Optics:
Cutoff angle, Beam Mode: 2.2° - 24°
Cutoff angle, Spot Mode: 2.5° - 24°
One-tenth peak angle, Wash Mode: 15° - 45°
Interchangeable rotating gobos:
Permitted material: Stainless steel or borosilicate glass with 450° C high temp. coating
Diameter: 14 mm +0/-0.2 mm (0.55 in. +0/-0.008 in.)
Max. image diameter, glass: 8 mm (0.31 in.)
Max. image diameter, metal: 9.5 mm (0.37 in.)
Thickness, glass: 1.1 mm +0/-0.05 mm (0.045 in. +0/-0.002 in.)
Thickness, metal: 0.2 mm (0.008 in) nominal
Installation:
Mounting points: Two quarter-turn brackets for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to illuminated surfaces: 33 ft. (10 m)
Minimum distance to combustible materials: 8" (20 cm)
Minimum clearance around fans and vents: 20" (50 cm)
Connections:
AC power in/thru: Neutrik PowerCon
DMX data in/out: 3-pin and 5-pin locking XLR
Electrical:
AC power (EU models): 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Primary fuse: 5T, 250 V, 8.0 A
Typical Power and Current:
120 V, 60 Hz: 377 W, 3.1 A, PF 0.985
230 V, 50 Hz: 372 W, 1.7 A, PF 0.978
Thermal:
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1430 BTU/hr.
Approvals:
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55103-1, -2; EN 61000-3-2,-3; EN 61000-4-2, -4, -5; EN 61547
US safety: UL 1573 US EMC: CFR Title 47 Part 15 Class A
Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class
A Australia/NZ (pending): RCM
