DESCRIPTION:

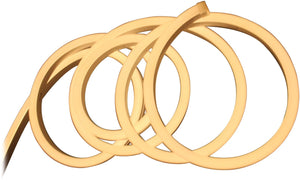

The DECO Flex C takes neon strip lighting to a new level. With a total of 504 LEDs it features Red, Green, Blue and Warm White capabilities that allow the users to create a multitude of custom color combinations. The 3000K color temp on warm white will completely transform an atmosphere. Available in 19’ 9.25” reels, it was designed with a flexible and durable silicone casing. The left to right curve angle allows for easy concave & convex applications. With an IP66 rating, it can be installed indoor and outdoors. As part of the DECO Series, the Flex C was designed to provide versatility with simplicity by being able to connect to a number of different Deco Drivers for power and control connection. Simplify your next install with the DECO Flex C!
ITEM ID: 5050C
OUTPUT PROTOCOLS: DMX-512
LED TYPE: SMD 5050 Red, Green, Blue, Warm White
LED QUANTITY: 504
COLOR TEMP WW: 3000K
LED WATTAGE: .22W (Each)
POWER INPUT: 24V
TOTAL MAX POWER: 108W
DRIVE METHOD: Constant Voltage
OPERATING TEMP: 125ºF
DECO DRIVE COMPATIBLE: Can Connect One Unit Per Output Port of DECO Driver (Driver Required To Be Set In Ch4 or Ch7 Operating Modes)
CONTTROL: DMX 512 (When Using Deco Driver)
DMX 2 MODES: 4 Channel Mode: Red, Green, Blue, Warm White 7 Channel Mode: Dimmer, Red, Green, Blue, Warm White, Strobe, Macro
IP RATING: IP66
INSTALLATION SYSTEM: 6 Mounting Clips (Included)
HOUSING: Silicone Type Material (3 Type)
HOUSING TYPE: Mushroom Top
CURVING TYPE: Horizontal Curve (When Light Output is Facing Up)
LENGTH: 19’ 10.5” Including Cable (605.79cm)
CUSTOM CUTS: Cuttable Mark Located On The Bottom, Cuttable Approximately Every 3.92” inch (99.7mm)
LED SPACING: .46” (11.9mm)
LEAD CABLE: 38” (965.2mm)
POWER CONNECTION: 5 Conductor Cable
