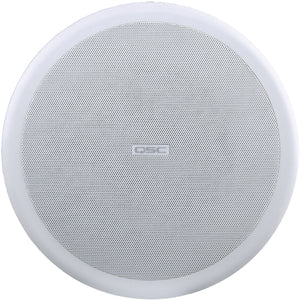

QSC AC-C8T

QSC AC-C8T

$1,399.99
$1,399.99
Sold out
Shipping calculated at checkout.
"

Features

  • High quality transducers provide exceptional clarity through the critical voice range.
  • Improved musicality often not seen in typical BGM class products.
  • Ported baffle for increased low frequency extension down to 52 Hz.
  • Low saturation 70/100V transformers with 8 ohm bypass.
  • 4-pole Euroblock connector eases system wiring.
  • Advanced voicing via QSC Intrinsic Correction™, applied using the Q-SYS networking platform or CXD Series Amplifiers.
  • White (RAL 9010) with UV inhibitors to match complimenting QSC product families.
  • Complete EASE, CF2, CAD, & BIM information available online.
Specifications AC-C8T
Effective frequency range 52 Hz – 20 kHz
Rated noise power / voltage 80 watts / 25.3 volts (rms)
Broad-band sensitivity 89 dB SPL
Coverage angle (-6 dB) 100° (500 Hz to 5 kHz)
Maximum continuous SPL 108 dB
Maximum peak SPL 114 dB
Rated impedance 8 ohms
Transformer taps:
70 V: 60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass
100V: 60, 30, 15, 7.5 watts and 8-ohm bypass
HF Transducer 22 mm [.86-inch] silk dome tweeter, coaxially mounted
LF Transducer 210 mm [8-inch] Polypropylene cone with butyl rubber surround
Input connector type Euroblock connector with parallel output terminals
Baffle material Painted ABS polymer
Grille material Painted steel
Back can material Plated steel
Testing Listed UL1480, UL2043 safe for use in air handling space
Net weight 5.2 kg [11.5 lb]
Product dimensions Ø316 x 288 mm [Ø12.4 x 11.3-inch]
Cut-out Dimensions Ø285 mm [Ø11.2-inch]
Ceiling Capture Thickness 6 - 38 mm [0.25 - 1.5-inch]
Shipping weight 13.3 kg  [29.3 lb]  (pair packed)
Shipping dimensions 743 x 381 x 381 mm  [29.3 x 15 x 15-inch]
Included accessories Rails & C-ring for ceiling tile installation
Optional accessories AC-MR8 mud ring for sheet rock installation
"
