Sennheiser ew 300 G4-BASE COMBO-AW+ Wireless Handheld / bodypack combo base set. Includes (1) SKM 300 G4-S handheld microphone with mute switch (microphone capsule sold separately), (1) SK 300 G4-RC bodypack transmitter (lavalier, headmic or input cable sold separately), (1) EM 300-500 G4 rackmount receiver, (1) GA3 rack kit, and (1) mic clip, frequency range:AW+ (470 - 558 MHz)
Perfect for presenters or singers, this combo set consists of 1 SKM 300 G4-S handheld with mute switch, 1 SK 300 G4 RC wireless bodypack transmitter, 1 EM 300-500 rackmout receiver, 1 GA3 rack kit and 1 mic clip (microphone capsule, lavalier, hand mic and/or input cable sold separately).
Overview
Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.
The best choice if you need bodypack, handheld transmitters and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack and a handheld transmitter. Just add your favorite capsule and clip-on or headset microphone.
Features
Easy to use, fast setup time
Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
Up to 88 MHz bandwidth, up to 32 channels
Increased RF output power (10/30/50 mW)
Transmission Range: up to 100 meters / 330 feet
Compatible with wireless speaker system LSP 500 PRO
RC (remote control) switch available for the bodypack transmitter
In The Box

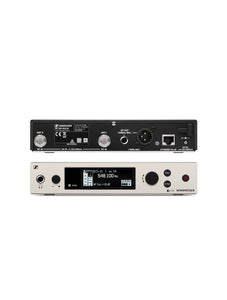

EM 300-500 G4 true diversity receiver
SKM 300 G4-S handheld transmitter
SK 300 G4-RC bodypack transmitter
MZQ 1 microphone clamp
4 AA batteries
power supply
2 rod antennas
GA 3 rackmount set
quick guide
safety guide
manufacturer declaration sheet
Specifications
EM 300-500 G4
Frequency range: AS: 520 - 558 MHzK+: 925 - 937,5 MHzJB: 806 - 810 MHzGBw: 606 - 678 MHzGw: 558 - 626 MHzBw: 626 - 698 MHzCw: 718 - 790 MHzDw: 790 - 865 MHzAw+: 470 - 558 MHzGw1: 558 - 608 MHz
Dimensions: Approx. 202 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: Approx. 980 g
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
Signal-to-noise ratio: ≥ 115 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM
Power supply: 12 V DC
Antenna connector: 2 BNC sockets
Current consumption: 350 mA
Adjacent channel rejection: Typically ≥ 75 dB
Intermodulation attenuation: Typically ≥ 70 dB
Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity: < 2.5 μV for 52 dBA eff S/N
Squelch: 5 to 25 dBμV in steps of 2 dB
Equalizer: Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range: -10 °C to +55 °C
Receiver Principle: True diversity
Blocking: ≥ 75 dB
SKM 300 G4
Dimensions: Approx. Ø 50 x 265 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 450 g
Signal-to-noise ratio: ≥ 115 dBA
RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response: 80 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ≤ ±15 ppm
SK 300 G4
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: ≥ 115 dBA
RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
Input impedance: 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ≤ ±15 ppm
