Sennheiser ew 500 G4-MKE2 Wireless lavalier set. Includes (1) SK 500 G4 bodypack, (1) MKE 2 Gold lavalier microphone (omnidirectional, condenser), (1) EM 300-500 G4 rackmount receiver and (1) GA3 rack kit.

Rugged all-in-one wireless system for broadcasters and presenters. Set consists of 1 SK 500 G4 bodypack, 1 MKE 2 Gold Lavalier mic, 1 EM 300-500 rackmount receiver and 1 GA3 rack kit.

Overview
The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups.
The pro‘s choice for impressive presentations. The professional MKE 2 Gold omni-directional condenser microphone resists the test of time on any big live stage and ensures a high speech intelligibility on any stage, indoors and outdoors.

Features
True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Up to 32 compatible channels
Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
In The Box
EM 300-500 G4 true diversity receiver
SK 500 G4 bodypack transmitter
MKE 2 clip-on microphone
GA 3 rackmount set
2 AA batteries
2 rod antennas
power supply
quick guide
safety guide
manufacturer declaration sheet
Specifications

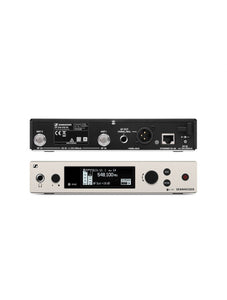

EM 300-500 G4
Frequency range: AS: 520 - 558 MHzK+: 925 - 937,5 MHzJB: 806 - 810 MHzGBw: 606 - 678 MHzGw: 558 - 626 MHzBw: 626 - 698 MHzCw: 718 - 790 MHzDw: 790 - 865 MHzAw+: 470 - 558 MHzGw1: 558 - 608 MHz
Dimensions: Approx. 202 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: Approx. 980 g
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
Signal-to-noise ratio: ≥ 115 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM
Power supply: 12 V DC
Antenna connector: 2 BNC sockets
Current consumption: 350 mA
Adjacent channel rejection: Typically ≥ 75 dB
Intermodulation attenuation: Typically ≥ 70 dB
Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity: < 2.5 μV for 52 dBA eff S/N
Squelch: 5 to 25 dBμV in steps of 2 dB
Equalizer: Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range: -10 °C to +55 °C
Receiver Principle: True diversity
Blocking: ≥ 75 dB
SK 500 G4
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: ≥ 115 dBA
RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
Input impedance: 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ≤ ±15 ppm
MKE 2
Connector: 3.5 mm jack
Frequency response: 20 to 20.000 Hz ± 3 dB
Max. sound pressure level: 142 dB
Cable length: approx. 1.60 m
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
Equivalent noise level: 26 dB
Equivalent noise level weighted as per CCIR 468-3: 39 dB
