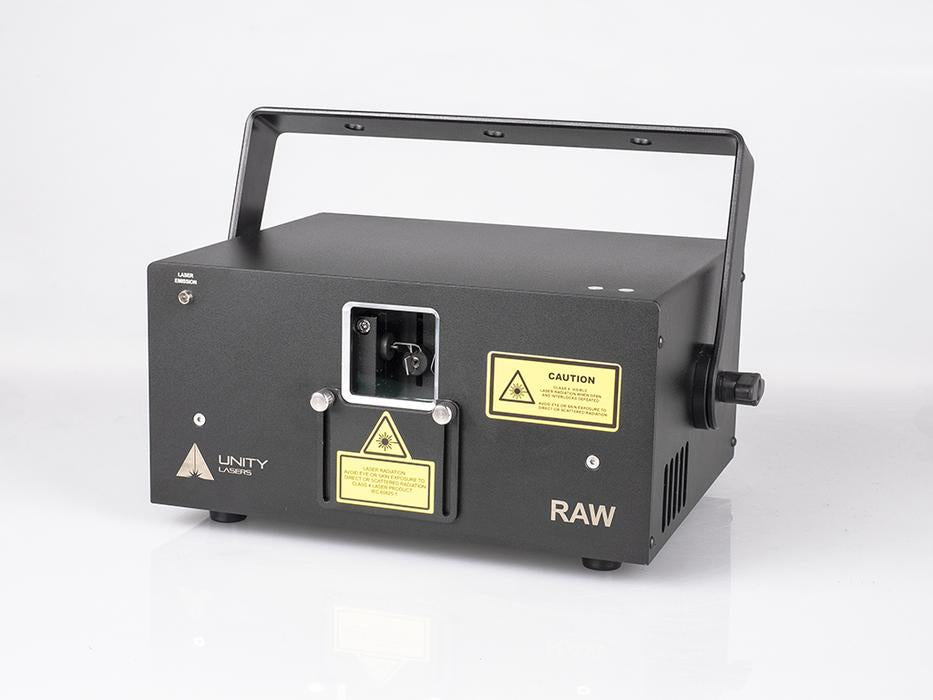

ProX X-RAW1.7 Unity RAW 1.7 Laser Light Show Fixture
Description
The Unity RAW 1.7 is a full-color RGB, diode-based laser systems, designed for clients who need impactful aerial beam effects, with the ability to also produce laser graphics, logos, and text.
Applications
The RAW Series is perfect for DJs, nightclubs and entertainment venues, where you need an impactful and easy to use laser system, at an economical price point. It is suitable for venues up to 2,000 people in capacity.
Control
Raw Series lasers are incredibly easy to setup and use. And can easily be controlled via ILDA, or via DMX / ArtNET (with Pangolin software).
We recommend using the Pangolin FB3QS or FB4 control hardware, with QuickShow software.
Try a FREE demo, and see it in action here: http://www.pangolin.com/quickshow.
What’s in the box
The RAW 1.7 includes all of the accessories you'll need right out of the box.
RAW 1.7 Laser Projector
ILDA cable
E-stop safety system and E-stop cables
Safety Interlocks
Safety Keys
Features
Product Name: RAW 1.7
Type: full-colour, semiconductor diode laser system
Guaranteed optical output: >1700mw
Suitable for: indoor/small outdoor laser shows and laser graphic displays
Control signal: ILDA
Scanning system: 25kpps @ 8°
Safety: fully complies with the latest EN 60825-1, and FDA regulations
Weight: 7kg
Package includes: power cord, 10M ILDA signal cable, E-STOP box with 10M cable, set of 4 safety keys, 5-pin interlock bypass plug, user guide.
R | G | B [mW]: 400 | 600 | 1000
Beam size [mm]: 5 x 3
Beam divergence: <1.1mrad [full angle]
Modulation: analog, up to 50kHz
Power requirements: 100-230V/50Hz
Consumption: max. 90W
Operation temperature: 10-40 °C
Ingress protection rating: IP54
System features: All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, daisy chain of emergency STOP signal for multiple system "one-hit" operation.
Laser safety features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.
*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions: Length: 238
Width: 192
Height: 114
Suggested Shipping Method: Parcel
UPC
850023147103
