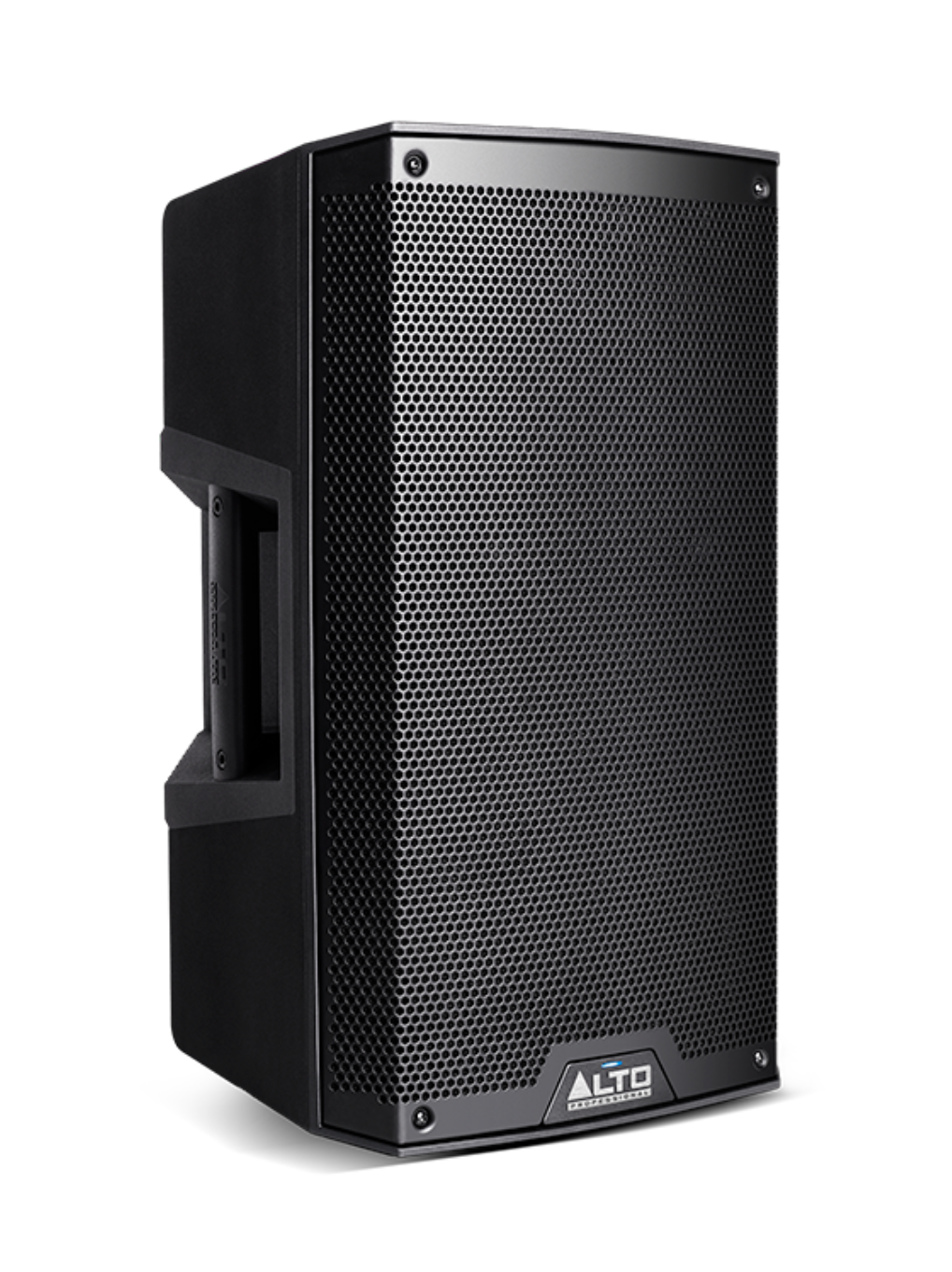

Alto Professional's TS310 is a member of their Truesonic TS3 Series that builds upon the success of their wildly-popular TS2 Series, performing everything you demand in a no-compromise family of professional loudspeakers, and solving every performance and installation challenge you face. In every sense, they're high-performance, with newer transducers and amplifiers that enable them to play extremely loud and clear, without restriction or compromise. They're also "high-performance" from the standpoint of concept and manufacturing—Alto was determined to make sure that every aspect of their design outperformed what it was called upon to do. So the end result are loudspeakers that reach a level of excellence and refinement that exceeds expectations.
All models in the Truesonic TS3 series share a 2000-watt peak (1000-watt continuous) amplifier, a significant enhancement over the 1100-watt peak (550-watt continuous) amplifiers featured in the TS2 Series. The TS3 series boasts more advanced low-frequency drivers designed to play louder with better power-handling than their already-impressive predecessors. They also include a horn-loaded high-frequency driver. This impressive transducer features an updated heat sink design that provides superb heat dissipation for exceptional power-handling, even during all-night-long concert levels. Because these improved drivers can safely handle the additional power, these models take full advantage of the increased wattage, delivering higher SPLs with lower distortion.
And if all that weren't already enough, they're now easier to use, offering a newer, enhanced control panel with clearer control indications and detents that make for a quicker, more precise setup.
So with 2000 Watts of bi-amped power, newer drivers plus easier, more satisfying controls and setup—the TS3 range won't just meet your requirements—it'll make you re-think what's possible.
Includes
TS310 Loudspeaker
Power Cable
User Guide
Safety & Warranty Manual
Available Accessories (sold separately): TSB810 Bracket, TS210 Cover
Features
2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
10" (254mm) LF driver, 2.5" (65mm) high-temperature voice coil
HF Driver: 1.4" (35mm) neodymium magnet HF driver with precision waveguide
High quality, lightweight, cabinet design for easy transport, set up, and installation
Pole-mountable, wedge monitor, bracket installation, or flown application with integral M10 suspension points
Integrated 2-channel mixer with dual XLR-¼" combo mic/line inputs, independent level controls, XLR Link output, Contour EQ switch, and Ground-Lift switch
Custom-engineered high-efficiency class D amplifiers with passive cooling design – no fan means the speaker runs cleaner, quieter, and has greater long-term reliability
Designed and tuned in the USA
Specifications
Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
LF Driver: 10" (254mm) LF driver, 2.5" (65mm) high-temperature voice coil
HF Driver: 1.4" (35mm) neodymium magnet HF driver with precision waveguide
Crossover: 2.5 kHz
Maximum SPL: 129 dB peak, 126 dB continuous (dB SPL @ 1m)
Frequency Response: 54 - 20 kHz (+/- 3 dB)
Frequency Range: 48 Hz - 22 kHz (-10 dB)
Horn Coverage: 90° H x 60° V nominal
Equalization:
(1) Contour Switch
(1) Low and High Frequency +3 dB Boost
Connectors:
(2) XLR/TRS ¼" (6.35mm) combo inputs
(1) XLR link output
(1) IEC power cable input
Controls:
(2) Volume
(1) Power on/off switch
(1) Contour switch
(1) Ground-Lift switch
Indicators:
(2) Power LED (front and rear)
(1) Clip limiter LED
Protection:
Electronic clip
Thermal and transducer overdrive protection
Power Connection: IEC with Mains Fuse
AC Voltage Input: 100, 110-120, 220–240 V, 50/60 Hz
Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
Mounting/Installation: 36mm standard pole mount, wall or ceiling mount using TSB810 bracket (sold separately), flown application with integral M10 suspension points, wedge monitor
Dimensions: (H x W x D): 20.6" x 12.6" x 11.8" (524 x 320 x 300mm)
Weight Net Weight: 26.1 lbs. (11.9 kg)
Design Origin: Designed and tuned in the USA
Available Accessories (sold separately): TSB810 Bracket, TS210 Cover
NOTE: All information is subject to change without prior notice.
