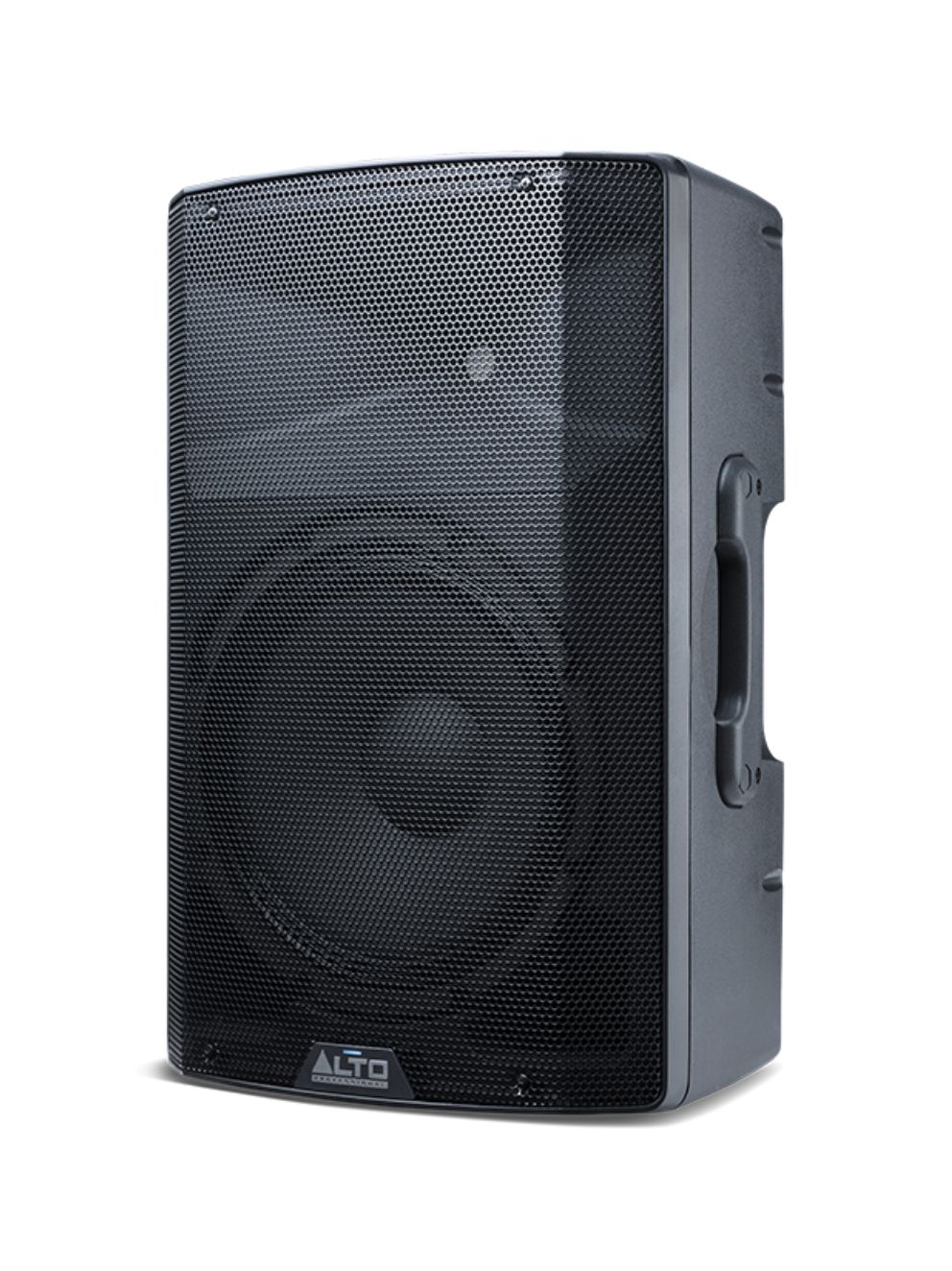

Alto 600W 12" 2-Way Active Speaker
Alto Professional's TX212 is part the TX2 Series, a family of active loudspeakers suitable for your most demanding gigs, night after night. The TX2 Series employs much of the technology of Alto's acclaimed TS3 series (available separately), and delivers the clarity as well as the power you need to sound your best. The TX212 is a bi-amplified 2-way loudspeaker, built with a long-excursion woofer and a 1" titanium compression driver in a precision horn. This horn features a recently-developed design that improves the high-frequency performance and produces a very precise 90° H X 60° V radiation pattern which is ideal for optimal audience coverage.
TX2 Series Loudspeakers
Features a new ID, resulting in lightweight yet rugged, easily-transportable cabinets. Their trapezoidal shape accomodates either upright or wedge monitor positioning and their full-sized steel grille provides full driver protection. They're built for continuous heavy-duty use. Add to that their full complement of inputs/outputs and mounting options and it’s easy to understand that the TX2 Series can play an indispensable role in your performance.
Alto Professional TX212 Features:
600 Watts peak, (300 Watts continuous Class D power)
The recently-developed horn design delivers greater coverage 90° H x 60° V
The full grille delivers style and provides protection for your investment
12" (305 mm) LF driver, 2" (50.8 mm) voice coil
1" (25.4 mm) neodymium HF compression driver
Lightweight, portable design for main or wedge monitor operation
Standard speaker pole socket
Bi-amplified design with precision active crossover and EQ
Balanced XLR/TRS with selectable Mic/Line input. XLR Link Output, Contour EQ switch, and Ground-Lift switch
Designed and tuned in the USA
Alto Professional TX212 Specifications:
Power Output: 600 W peak (400 W LF + 200 W HF), 300 W continuous (200 W LF + 100 W HF) Class D power
LF Driver: 12" (305 mm) LF driver, 2" (50.8 mm) voice coil
HF Driver: 1" (25.4 mm) neodymium HF compression driver
Crossover: 2.5 kHz
Maximum: 118 dB at 1m
Frequency Response: (-3 dB): 70 Hz – 20 kHz
Horn Coverage: 90° H x 60° V nominal
Equalization: Contour Switch Low and High Frequency +3 dB Boost

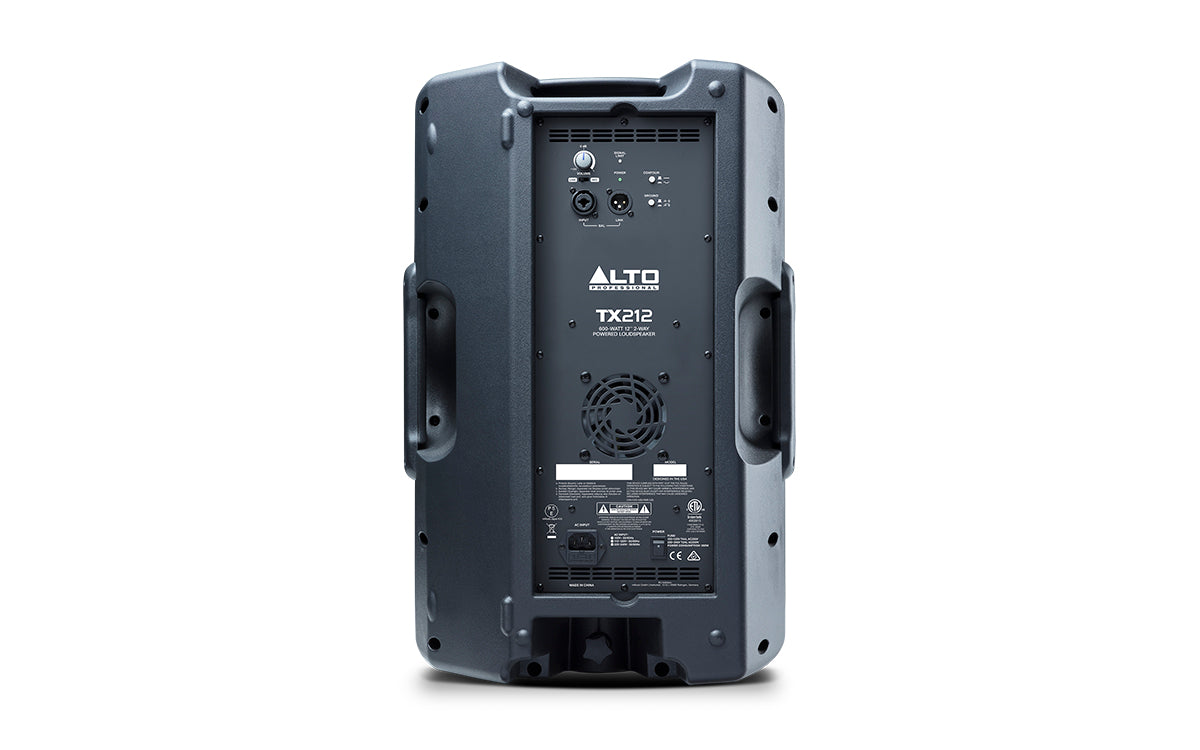

Connectors:
(1) XLR/TRS 1/4” (6.35 mm) combo input
(1) XLR link output
(1) IEC power cable input
Controls:
(1) Volume
Power on/off switch
Contour switch
Ground-Lift Switch
Indicators:
(2) Power LED (front and rear)
Clip limiter LED
Protection:
Overload Analog Limiter / Compressor
Thermal Protection
Power Supply: 100V-240V ~ 50/60Hz
AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
Fuse:100–120V T4AL AC250V, 220–240V T2AL AC250V
Power Consumption: 260 W
Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
Mounting/Installation: Standard speaker pole socket, Wedge Monitor
Dimensions (H x W x D): 23.7" x 15" x 13.7" (602 x 381 x 348mm)
Net Weight: 31.3 lbs. (14.2 kg)
NOTE: All information is subject to change without prior notice.
