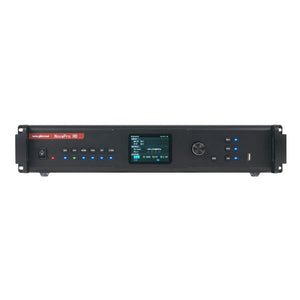

The new NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats. Compatible with all ADJ Video Panels.
Details
The new NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / 3G-SDI, up to 1080p @60Hz input resolution, 165MHz pixel clock and 4G-Bit output bandwidths. NOVAPRO HD also includes DMX512 and GenLock interfaces, Ethernet ports for communication through standard TC/IP and USB control for cascading with additionalNOVAPRO HD’s. NOVAPRO HD is compatible with all of ADJ’s current video products.
Specifications
FEATURES:
No Computer or External Scaler Needed (standard rectangular layouts only)
Up to 1080p @60Hz Input Resolution
165Mhz Pixel Clock / 4G-Bit Output Bandwidth
Multiple Video Signal Format Support
Cascade Multiple Units Together
Rack Mountable Aluminum Enclosure (screws not included)
CONTROL / CONNECTIONS:
(1) Input and (4) Output RJ45 EtherCON Ports
USB, 5pin DMX, and GenLock In/Out Ports
Audio Input: 1/8 inch connector
Video Input: DP / HDMI / VGA / DVI / CVBS / 3G-SDI
Locking IEC Power Input
SIZE / WEIGHT:
Length: 19.0” (483mm)
Width: 15.3” (389mm)
Height: 3.5” (88.2mm)
Weight: 13.2 lbs. (6.0kg)
ELECTRICAL:
AC 85-265V - 50/60Hz - 0.65A
Max Power Consumption: 30W
