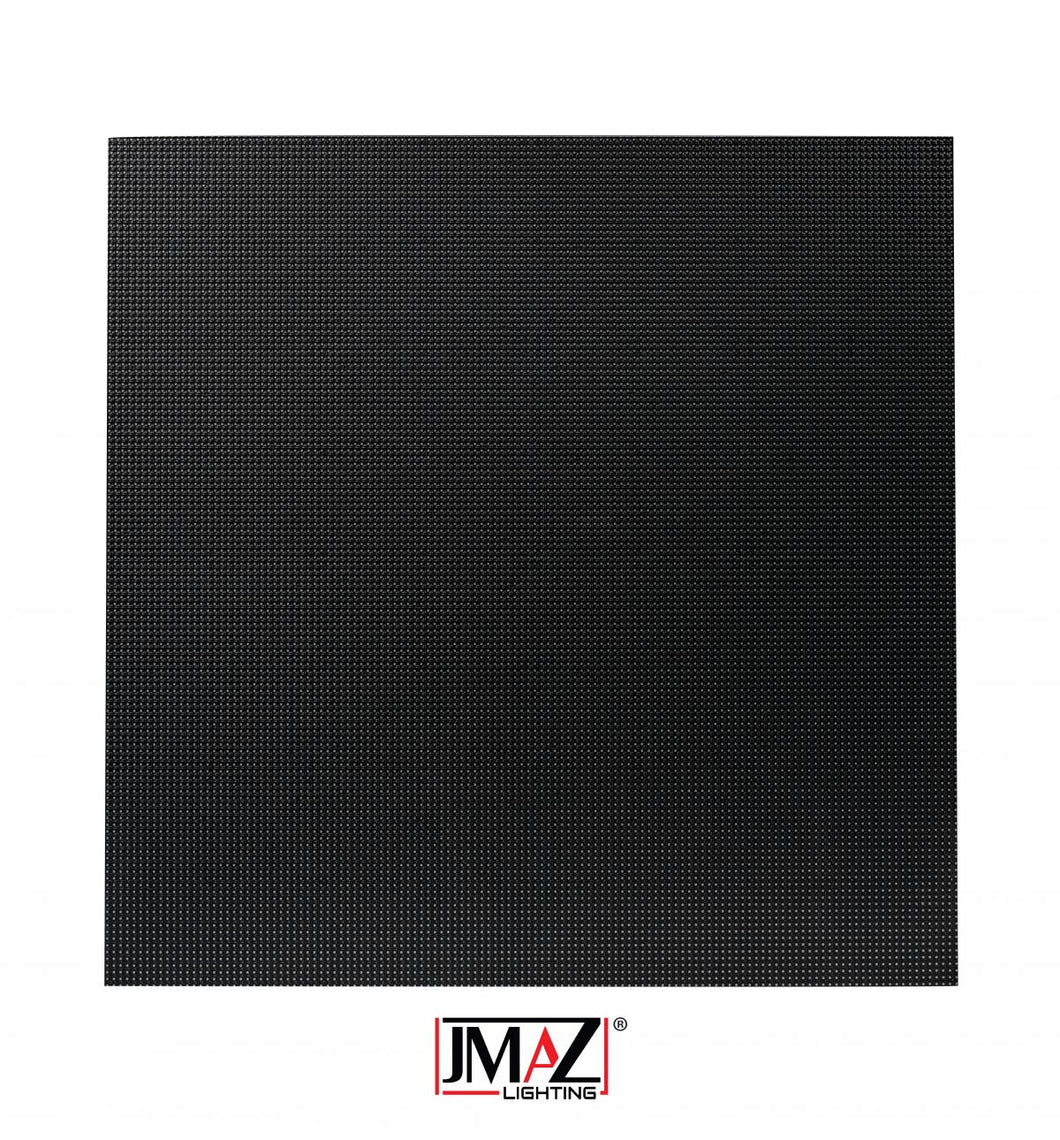

The EV3 MK2 is a high-resolution video panel
LED Chip
LED constitution Types
SMD2020 knlight project
IC ICN2153
Module Specifications
Pixel Pitch 3.91mm
Module Pixels 4096dots
Module Resolution 64dots ×64dots
Module Size 250mm ×250mm
Module Weight 0.5kg/pc
Cabinet Specifications
Cabinet Size(WXH) 500*500mm
Cabinet Resolution 128dots x 128dots
Module Quantity 4pcs
Pixel Density 65536dots/m2
Material die-casting aluminum
Cabinet Weight 7.5kg
Screen Parameters
Screen Area
Cabinet Quantity
Brightness ≥1000cd/㎡
Driving Method 1/16scan
View Angle Horizontal 160° Vertical 160°
Min. Viewing Distance ≥3meter
Grayscale 65536
Colors 655Billion
Refresh rate ≥ 3840HZ
Input Voltage AC220V/50Hz or AC110V/60Hz
Power Consumption (Max. / Ave.) 660/220 W/m2
Screen weight 30kg/㎡
MTBF >10,000 hours
Life span ≥100,000 hours
Temperature-operating ﹣10℃～60℃
Humidity-operating 10%～90%
Controlling system nova
Source compatibility
(with video processor) AV,DVI,HDMI,SDI,S-Video,DPetc.
